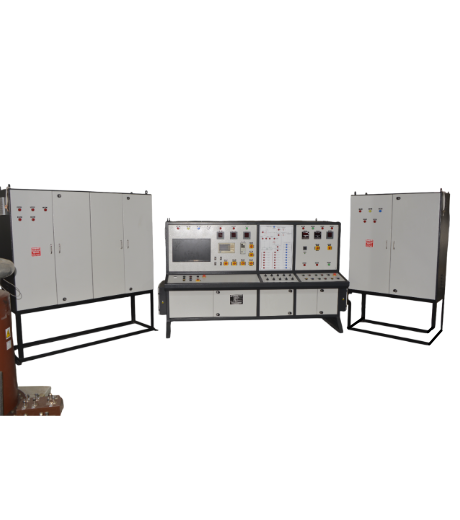

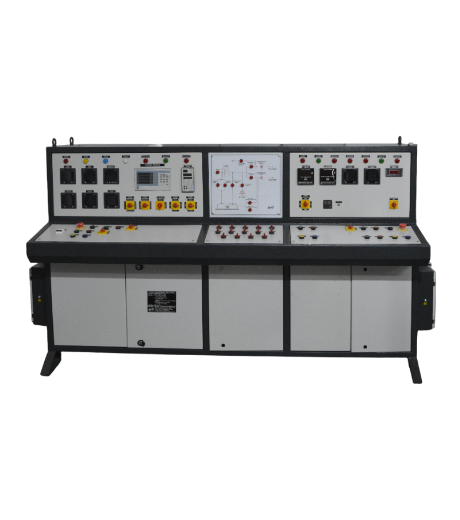

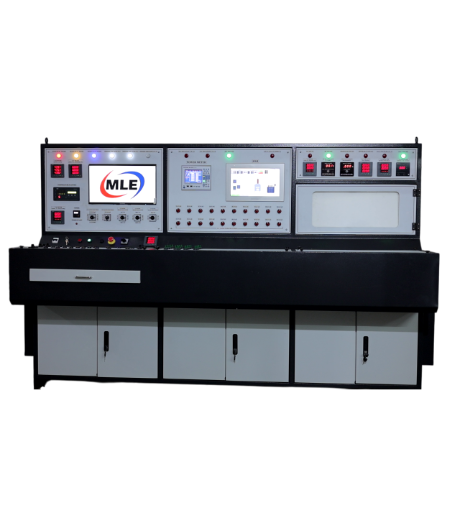

Type:

Automatic / Semi-Automatic / Manual

Input:

415V, 3 - Phase, A.C, 50Hz & 60Hz, ±5%

Output:

0 - 470V, 3 - Phase, A.C, 50Hz & 60Hz, ±5%

Panel Loading Capacity:

Up to 600V, 3 - Phase, A.C with 1300A Current Capacity at L.V Side

I.S Compliances:

IEC 60076 / IS 2026 / IS 1180 & Other Standards

Test Performed (Associated with Panel):

• Watt Losses Test
  (A) No Load Test , (B) Load Loss Test
• High Voltage Test / Separate Source Voltage Withstand Test
• Induced Over Voltage Test
• Magnetic Balance Test
• Vector Group Verification Test
• Temperature rise Test
• Zero sequence impedance Test
